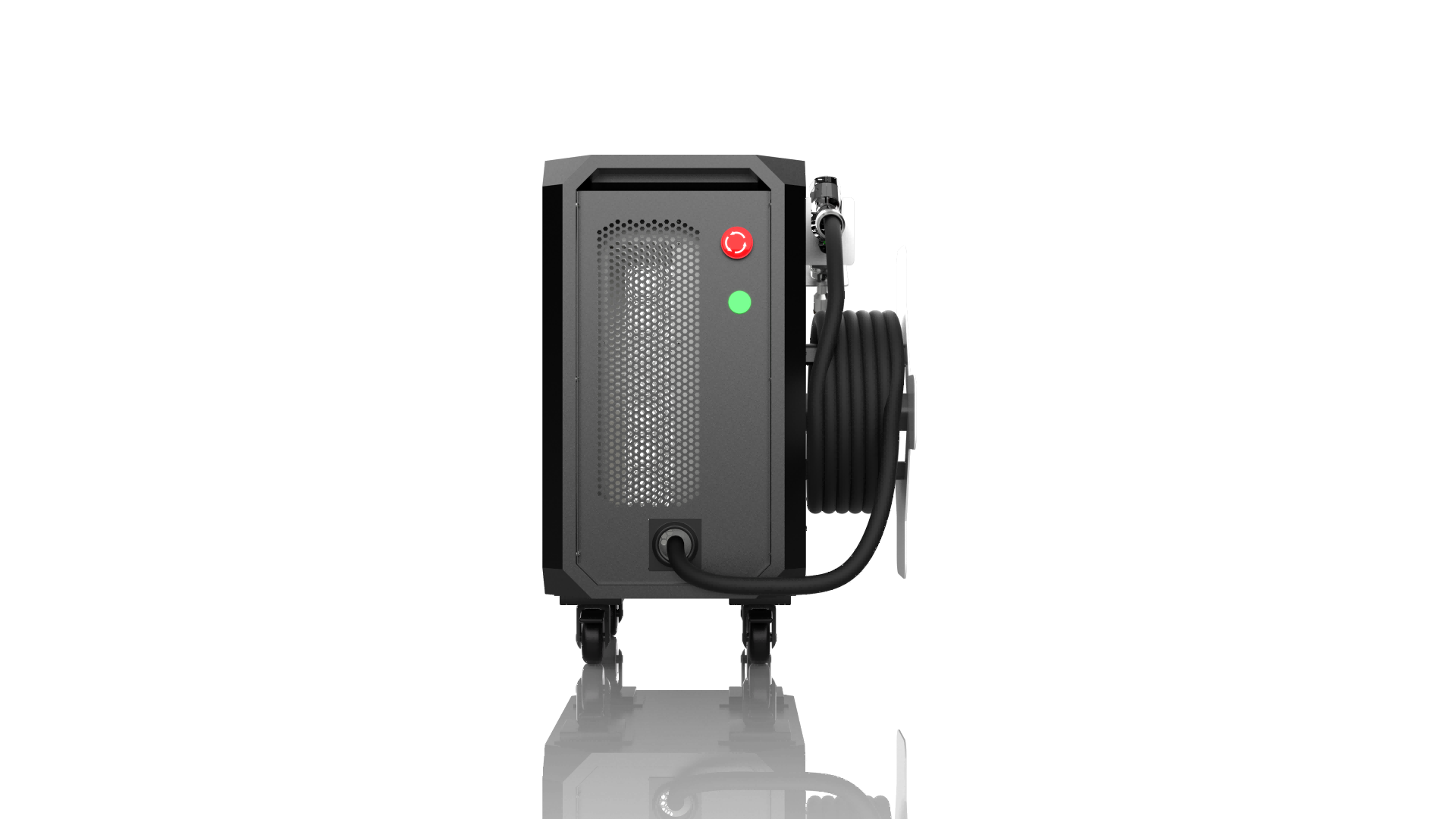

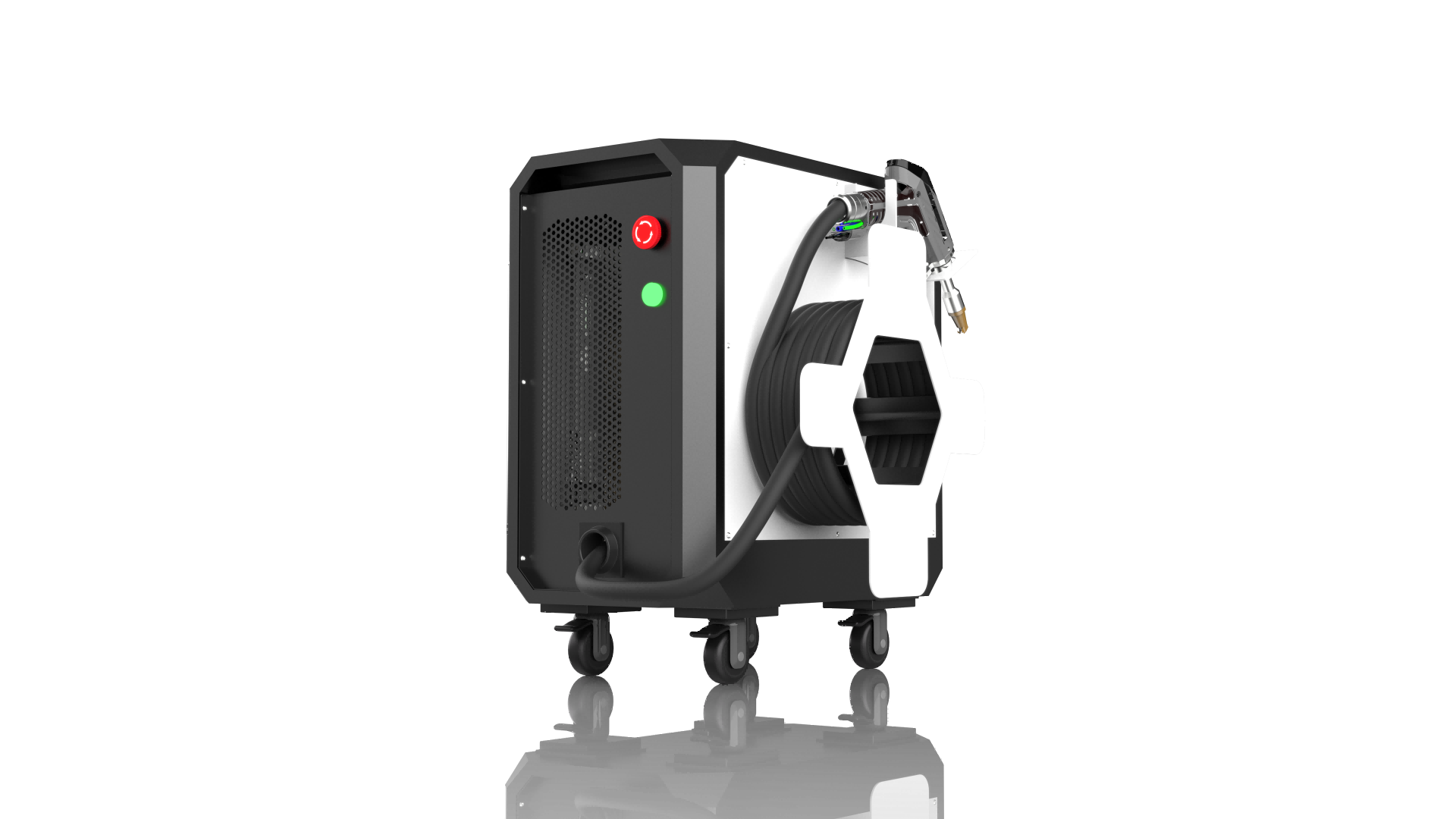

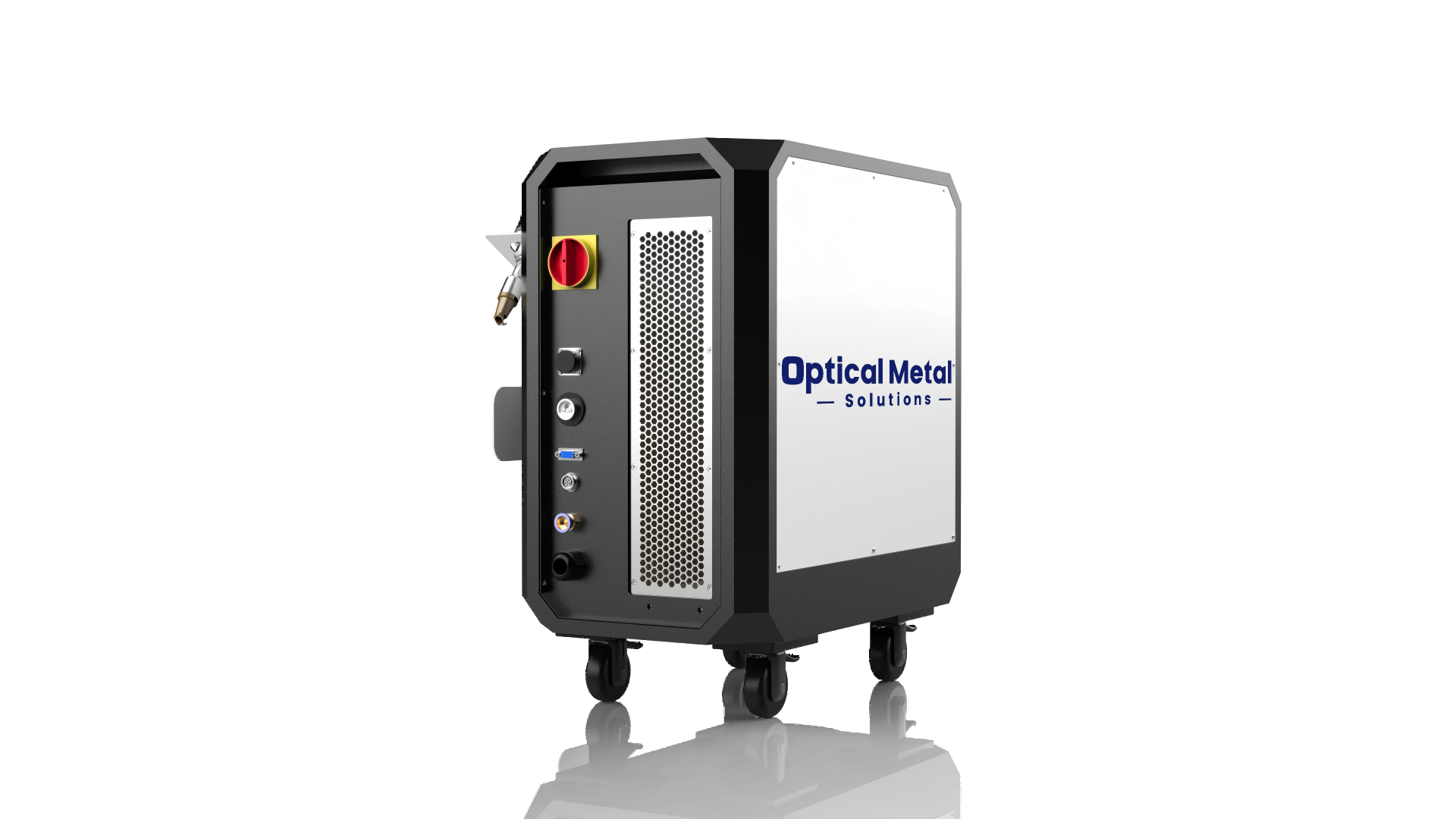

Portable Air Cooled Laser Welder

• Excellent beam quality, high output spot energy

• Diverse laser gun models to choose

• Powerful energy control

• Scanning width up to 8mm

• Fan precision speed regulation

• Built-in sensors with real-time feedback

• Laser output percentage control

• Excellent dust-proof, anti-interference ability

• Power variation <3% in continuous output mode;

• Easy changement of lens and nozzles

• Highly integrated, compact structure

• Diverse nozzles for different position and wires

• Easy-to-understand interface

• Best brands: Schneider, Omron, Weidmuller, etc...

• 9 frequent parameter packages

• Maximum 40A electrical currency supported

• Real-time alarms and diagnostics

• Main power isolation switch

• Reserved functions extension holes

• 3 keys controlling machine and laser source power input

• Eye-catching emergency stop button

• Laser Enable function in control syste

• Machine status dual-color light

Welding Wire Diameter

0.8 ~ 2.5mm

Main Machine Weight

70 KG

72 KG

Wire Feeder Weight

13.2 KG

Main Machine Overall Dimension

660*435*540 mm

Wire Feeder Overall Dimension

560*250*350 mm

Cooling Method

air cooling

Welding Gun Cable Length

10 m

Welding Gun Weight

≤0.65 KG

Power Consumption

3 KW

4.5 KW

5.5 KW

Electrical Voltage &Frequency

220V 50/60 HZ

Welding Speed

up to 120 mm/s

Operation Method

Manual / Automated

Welding Thickness

≤ 2.5 mm

≤ 4 mm

≤ 5 mm
